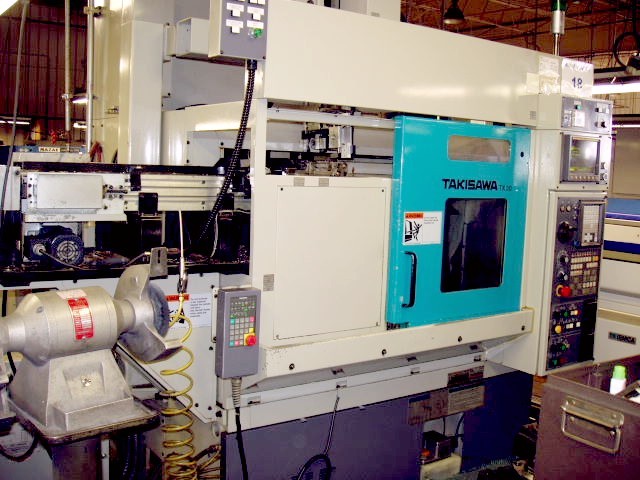

 Takisawa TX20 Lathe - CNC  1999

Specifications

Maximum swing 16.53"
Turning diameter 8.66"
Turning length 9.84"
X-axis travel 5.51"
Z-axis travel 12.59"
C-axis indexing 5 degress
Rapid traverse - X axis 787ipm
Rapid traverse - Z axis 944ipm
Through spindle hole diameter 2.08"
Spindle speeds 120-6,000rpm
Main motor 10hp
Turret capacity 12 station
Live tooling motor 5hp
Live tooling speeds 300-8,000rpm
Machine dimensions; LxWxH; approximate 129"x66"x68"
Weight; approxmately 6,500lbs

Notes

Equipped With:
Fanuc 21 T CNC control
RS-232C port interface for DNC operation
Factory installed Gantry Loader/unloader
Intergrated infeed & outfeed parts conveyors
9 total live tool holders (5 radial & 4 Axial)
6" 3-jaw Hydraulic through hole chuck with jaws
