  • Automatic
  • Acme Gridley
  • 1-5/8" RBN 8
  • Multi Spindle Bar
  • 8 Spindle
  • 1977
Acme Gridley 1-5/8

Specifications

Length: 12'5"
Height to Top Of Motor 7'3"
Weight 26,900 Lbs
Width: 4'1"
Collet Capacity Round 1 5/8"
Collet Capacity Hex 1 13/32"
Collet Capacity Sq. 1 9/64"
Idle Time: enhanced by Hi Lo and Cyclo Index
Main Tool Slide Travel 7"
Spindle RPM if Stopper 1291
Spindle Speeds 168-1529
St andard Main Motor 30 Horsepower
Stock Feed Out Max 7"

Notes

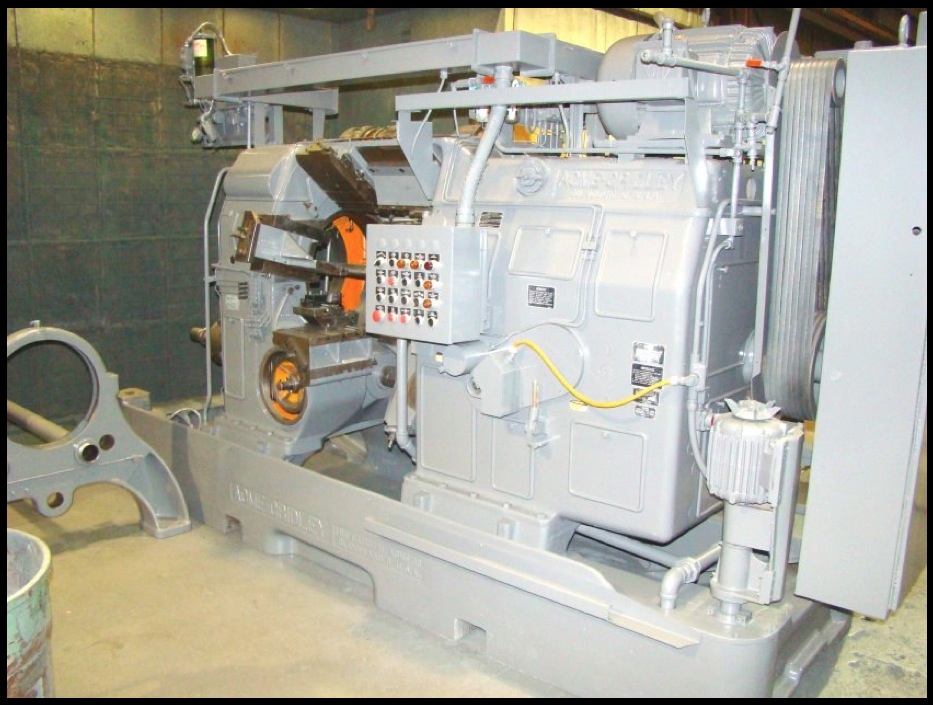

Acme-Gridley screw machine 1 5/8" RBN8. Mfd. 1977.
Serial #AM40579. Equipped with Motor & Controls, Stock
Stand & Stock Reel, 6 Cross Slides(1 being Shelf Type), Swing
type Recessing, Universal Chip Conveyor.
