  • CNC Machine
  • Mazak
  • INTEGREX 300 SY
  • Lathe - CNC
  • 3"
  • 2000
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:
Mazak INTEGREX 300 SY Lathe - CNC 3

Specifications

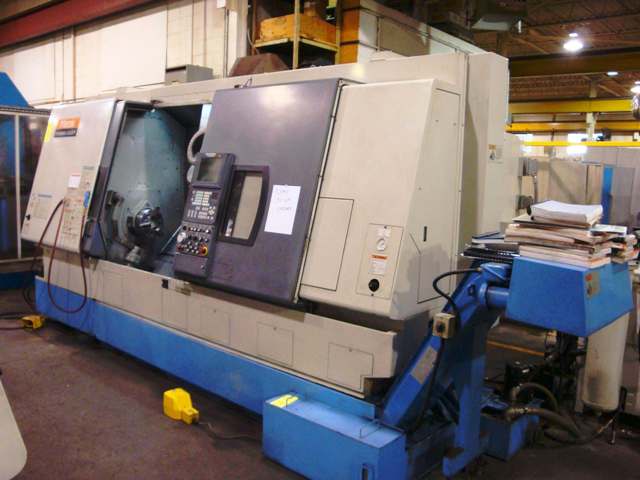

Mazak Integrex 300SY CNC Turning And Milling Center
Manufacturer: Mazak
Model: Integrex 300SY
S/N: 148213
Year: 2000
Condition: Excellent
Specifications:
Maximum Swing 24.01"
Maximum Swing Over Carriage 17.71" -24.01"
Main Spindle Nose/Spindle Bore/Max. Bar Work A2-8/3.46"/3.0"
Main Spindle Speed/Motor/Index 35-3500 RPM/25HP/0.001 Degree
Second Spindle Nose/Bore A2-6/2.99"
Second Spindle Speed/Motor/Index 35-3500 RPM/25HP/0.001 Degree
Magazine Capacity 40 ATC
Max Tool Length/Weight 11.81" / 22lbs
Rotary Tool Spindle Speed 6,000 RPM
Rotary Tool Spindle Horsepower 20 Horsepower
Travel Y-Axis +/- 4.13"
Travel X-Axis 22.83"
Travel Z-Axis 43.11"
Rapide Traverse (X,Y,Z) 1181 IPM / 591 IPM / 1181 IPM
Floor Space 143" x 88.5" x 107"

Notes

Equipped With:
Mazatrol Fusion 640MT Control, B-Axis 0.001
Degree Incr. N/A Contouring, 10" Dia. 3 Jaw Power
Chuck Main Spindle, Coolant Through Milling Head,
PCMCIA Interface (2-Slot), 40 Tool Magazine,
Milling-Spindle Synchronous Tapping, EIA/ISO
Option Package, Hydraulic Pressure Interlock,
10" Dia. 3 Jaw Power Chuck Sub Spindle, Automatic
Tool Eye, 3.5" FDD / 2 GB Hard Drive, Chip
Conveyor Side Exit, Hinge Type
