Sold!
Buy one like this

I want to sell a machine like this

  • CNC Multi Spindle
  • Tornos
  • Deco 26-6
  • Multi Spindle Bar
  • 26mm
  • 2002
  • Spindle Size: 26mm
  • C Axis:

Specifications

2002/03) 17-AXIS
Simple Spindle Stopping (No C-Axis)
1st Position Slide Has No Z-Axis (Used For Plunging)
Tornos Replaced Spindle Bearings And Clutches (2006)
Installed Gear Kit Option In 2006
Cross Slide Tool Adapter Included (7) Total
Barnes Unit Includes Coolant Tank, Chip Conveyor & Oilchiller
High Pressure Pump
No S-4 Motor For Part Pickup
Smoke/Mist Collector

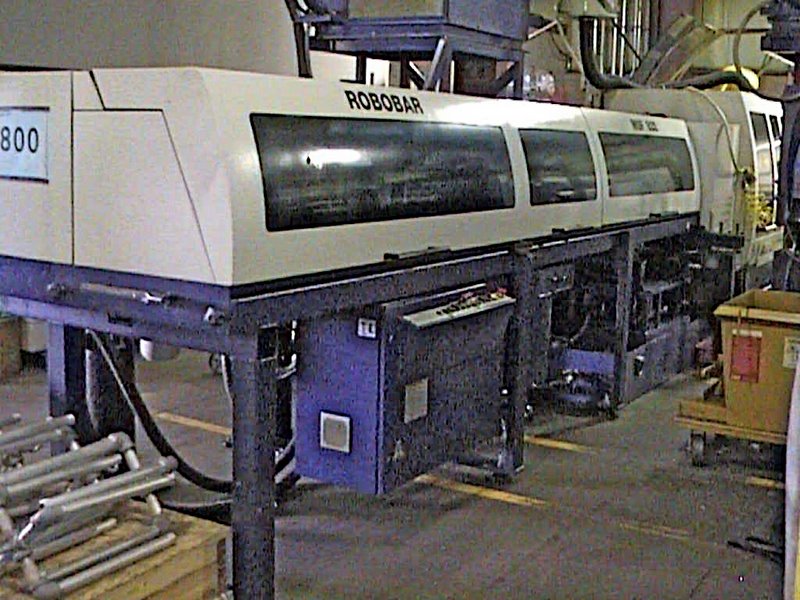

Robo-Bar Msf 0.832 (4m)
(1) Set Of Large Bar Guides And Pusher Rods
Optiona Steady Rest
Software V4.2
Capabilities:
Can Lock Work Spindle In Positive Drive Or Disengage For Simple
Stopping
Can Pull Bar End Back To Drop Into Robo-Bar Basket Or Eject Bar End Into
Basket In Machine Area
9717 Hours

Notes

Tornos MultiDeco 26/6 CNC 17-Axis, 6 Spindle Screw Machine
2002/2003
EQUIPPED WITH:
Software V4.2
Simple Spindle Stopping (No C-Axis)
1st Position Slide Has No Z-Axiis (Used For Plunging)
TORNOS Replaced Spindle Bearings And Clutches (2006) Installed Gear Kit
Option in 2006
Cross Slide Tool Adapter Included (7) Total
Barnes Unit Includes Coolant Tank, Chip Conveyor & Oil Chiller
High Pressure Pump
No. S-4 Motor For Part Pick Up
Smoke/Mist Collector
Robo-Bar MSF 0.832 (4M) with (1) Set Of Large Bar Guides And Pusher Rods,
Optional Steady Rest
CAPABILITIES:
Can Lock Work Spindle In Positive Drive Or Disengage For Simple Stopping
Can Pull Bar End Back To Drop Into Robo-Bar Basket Or Eject Bar End Into
Basket in Machine Area
Year Mfg. 2002
