  • CNC Swiss
  • Star
  • Ecas 20
  • Lathe - CNC
  • 20mm
  • 2008
  • C Axis:
  • Number of Axis: Yes
  • Tail Stock:

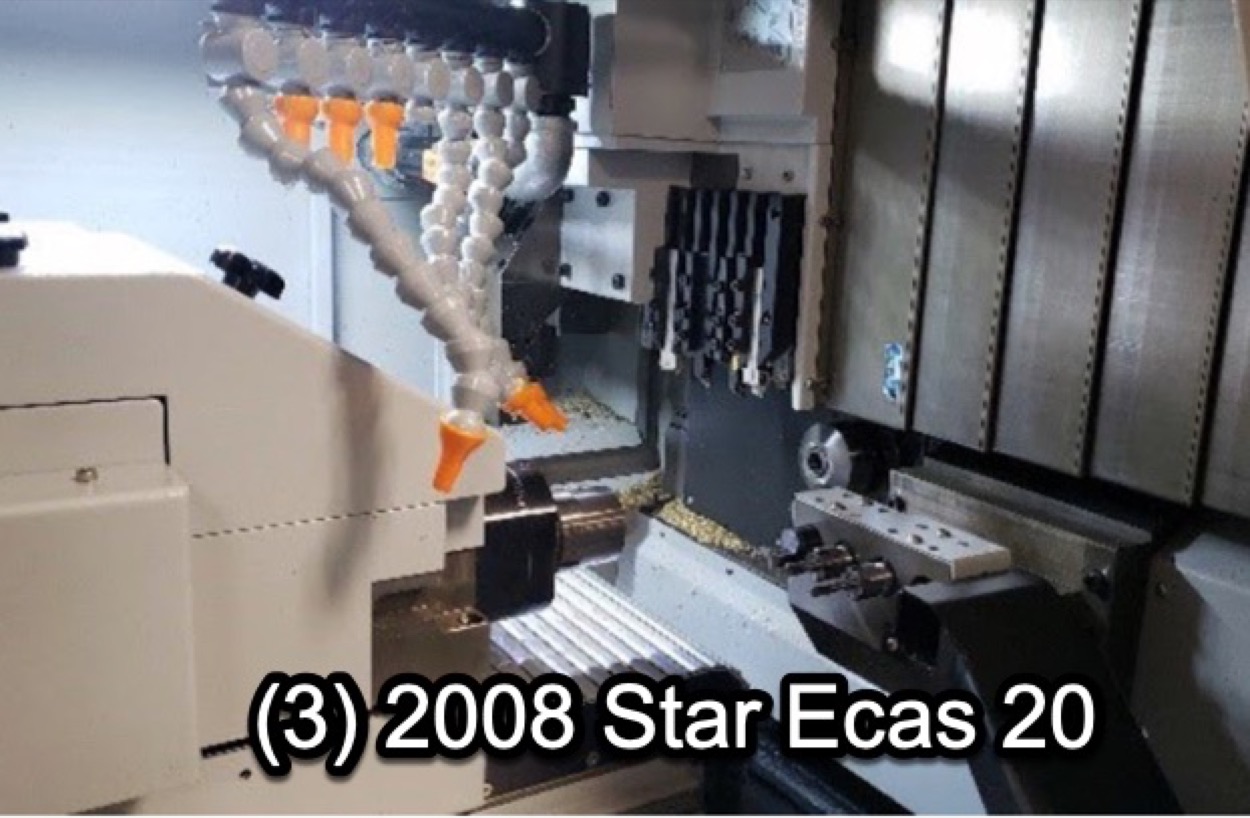

Star Ecas 20 Lathe - CNC 20mm 2008
Click here for photo gallery.

Specifications

ECAS-20
Max. machining diameter ø20mm(25/32in)
Max. headstock stroke Standard 205mm(8in)
with Gripping unit 205mm(8in)
4-spindle
sleeve holder Max. drilling capability ø10mm(25/64in)
Max. tapping capability M8 P1.25
Max. die cutting capability M8 P1.25
Power-driven
attachment Max. drilling capability ø8mm(5/16in)
Max. tapping capability M6 P1.0
Max. milling capability ø10mm(25/64in)
Max. slotting capability 1.5mm(W) 4mm(D)
Main spindle speed max.10,000min-1
Main spindle motor(continuous/30min) 2.2kw/3.7kw
Dimension(W D H 2,588 1,150 1,765mm
Weight 3,500kg

Notes

Selling company looking for offers.
Specificaitons:
• Max. Machining Diameter: 20mm (25/32in)
• Max. Headstock: 205mm (8in)
• Stroke (WITH GRIPPING UNIT): 205mm (8in)
• Tool (Number of Tools) - Fromt: 4 tools
• Rear: 2 tools
Comments:
• 3 identical machines
• 2008 models
• 2 Non guide bush, 1 converted to Chucker
• Chip conveyor
• Part conveyor
• Mist collector
• Thread whirlers
• Standard live tooling
• High pressure cooling system
• 1 with FMB Turbo 3-26 Magazine Bar loader ($5,000 extra)
• Working hours: 3607, 3787 and 3872
• Well maintained. Condition is very good
• Manuals and some tooling included
• Reasonable offers welcome
