  • Transfer Machine
  • Hydromat
  • HB 32/45 - 16
  • Rotary
  • 45mm
  • 1988

Specifications

Current Configuration:

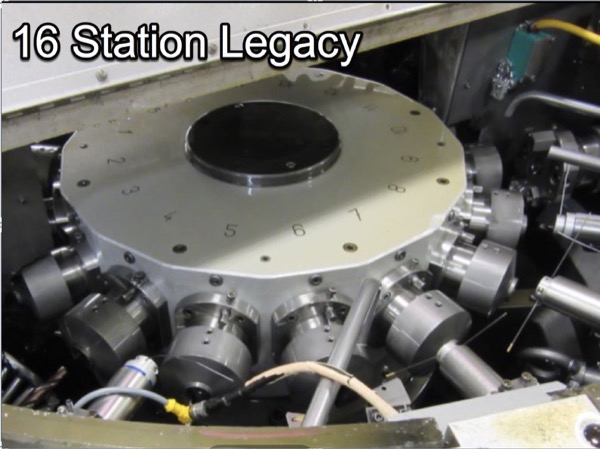

SINGLE INDEX DOUBLE PRODUCTION MACHINE
Workholding - Collets
Station 1 - Fanuc System R-30iA Mate magazine fed robot loader
Station 2 - Toolspindle Unit VE-36/100 QC, CF
Station 3 - Toolspindle Unit VE 35/60 QC, CF
Station 4 - Toolspindle Unit VE-26/80 QC, CF
Station 5 - Toolspindle Unit VE-36/100 QC, CF
Station 6 - Recess Unit 36/100 Servo w/central lubrication
Station 7 - Toolspindle Unit VE-46/120 QC, CF
Station 8 - Toolspindle Unit VE-26/80 QC, CF
Station 9 - Fanuc System R-30iA Mate magazine fed robot loader
Station 10 - Toolspindle Unit VE-36/100 QC, CF
Station 11 - Toolspindle Unit VE 35/60 QC, CF
Station 12 - Toolspindle Unit VE-26/80 QC, CF
Station 13 - Toolspindle Unit VE-36/100 QC, CF
Station 14 - Recess Unit 36/100 Servo w/central lubrication
Station 15 - Toolspindle Unit VE-46/120 HSK, C

Notes

Serial No. HB32-288
Rebuilt and retrofitted by Hydromat in 2011
Machine Cycles: 6 Million
Hydromat pendant control
Allen-Bradley tool life monitoring system with PanelView 1000 control
(2) Fanuc System R-30iA Mate Robot loaders type A05B-2551-B160
ChipBLASTER WV3 1,000 PSI Coolant System
Knoll 450K-1/2000/VR500 vacuum filter
OptiTemp OTM-15A Refrigerated Re-circulating oil chiller
3nine 600-014 oil mist eliminator with oil recycler
Parker Fluidpower Systems HPU6255B hydraulic power pack
Aluminum lid with acrylic ring
Platform w/Handrails
(14) Control Valves
(2) Load Valves
(10) Drill Detectors
