- CNC Machine

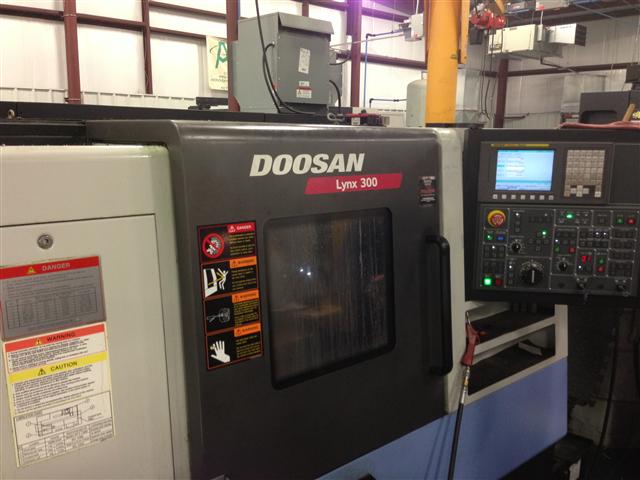

- Daewoo Doosan
- Lynx 300
- Lathe - CNC
- 2011
Specifications
Specifications:Spindle Motor: 20 HP
Spindle Speed: 3,500 RPM
Spindle Nose: A2-8
Draw Tube ID: 3.03"
Maximum Turning Diameter: 17.7"
Maximum Turning Length: 30.1"
Maximum Spindle Torque: 241 ft-lbs
Z axis Feed thrust (Cont / inter): 1,240 / 1,860 Lbs
Number of Tools: 12
Boring bar diameter: 1.5"
Turret Index Time: .15 sec.
Tool Selection: Bi-Directional
Tailstock Quil Stroke (Programmable): 4.72"
Coolant Pump Pressure: 65 psi
Chuck: 10"
Notes
Equipped With:
10" Chuck
Parts Catcher
Tool Setter
Tailstock
Chip Conveyor
Fanuc 0iT Control
