Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Nakamura
  • WT-300 MMY
  • Lathe - CNC
  • 2.55"
  • 2009
  • C Axis:
  • Y Axis:
  • Dual Spindles:
  • Live Tooling:
Nakamura WT-300 MMY Lathe - CNC 2.55
Click here for photo gallery.

Specifications

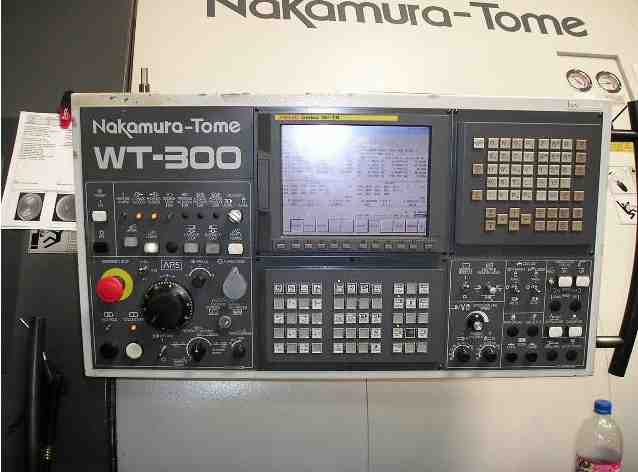

Cnc Control: Fanuc 18I-Tb
Max Turning Diameter: 10.63"
Distance Between Spindle: 43.31"
Max Turning Length: 30.71"
Bar Capacity L/R: 2.55"
L, R-Spindle
Spindle Speed: 4500 Rpm
Spindle Nose: a2-6
L Spindle Motor: 7.5 Hp
R Spindle Motor: 7.5 Hp
Rotating Tool / Turret Head:
Rotating Tool Speed: 3600 Rpm
Tool Stations (Rotating Tool): 24 (12St X 2)
Rotating Tool Spindle Motor: 5.5 / 3.7Kw X 2
Rotary System: Individual Rotation
Slide Travel:
Z1 / Z2-Axis: 30.7" / 30.7"
Y-Axis Upper Turret: 4.7 (+/-2.3)"
General Dimensions (Approx) (W X L X H): 147" X 101" X 89"

Notes

Equipped With (Must Be Verified by Buyer):
Fanuc 18I-Tb Cnc Control Y-Axis Upper Turret
C-Axis Both Spindles Milling for Upper and Lower Turrets (7.5 Hp)
2.55" Main and Sub Spindle Bar Cap High Pressure Coolant Pumps (Upper & Lower)
Fixed Type Air Blow Lns Hydrobar Sprint
3 Jaw 8" Chucks on Both Spindles Fanuc M-710Ic-5Axis Robot (Optional Feature)
Live Tool Holders (10 Linear & 5 Right Angle) Misc. Base Holders
Parts Catcher/Robot With Conveyor
Price: $349,500 W/O Fanuc Robot…………..$369,500 w/Fanuc Robot
Delivery: Approx. 3 weeks ARO
