  • CNC Machine
  • Nakamura
  • WT-100 MMY
  • Lathe - CNC
  • 2"
  • 2011
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Dual Spindles:
  • Live Tooling:

Specifications

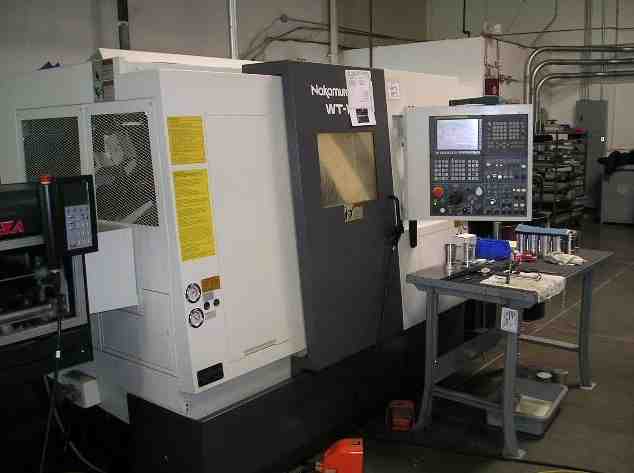

Nakamura WT-100 MMY CNC Turning Center (Mach. #319267)
New in 2011
Specifications (Subject to buyer verification):
Control Fanuc 31i Model A
Max Turning Diameter 7.48"
Max Turning Length 15.7"
Slide Travel: X1/X2 6.2"/6.5"
Slide Travel: Z1/Z2 18.3"
Slide Travel: Y +/- 1.3"
Slide Travel: B-Axis 21.65"
Spindle Speed 6,000 RPM
Hole Through Draw Tube 2"
Full C-Axis
Number of Driver Tool Stations 2 x 12
Drive Motor Left Spindle 20/14 HP
Drive Motor Right Spindle 14/10 HP
Machine Weight 13,000 LBS.
Machine Dimensions 142" x 78" x 73"
The WT-100 is a compact multi-tasking platform,
handling up to 42mm bar. High speed and high horsepower
help this machine reduce cycle times.
Opposed two-spindle, 2-turret construction
12 Station Turret with Half-Index Capability (48 total)
24 Milling tool stations
62mm Y-axis on Upper Turrets (+/ 31mm)
6000rpm Milling speed (Upper / Lower)
15 HP + 15 HP L/R spindle motor
9.7 HP C-Axis Milling Capable

Notes

Equipped with:
Quickload Servo S3 Barfeed
LNS Chip Conveyor
Parts catcher
Full C axis on both Main and Sub spindles
Y axis on upper turret
Misc. OD & ID tooling
Misc. Live tooling
High Pressure Coolant
2011 Nakamura WT-100MMY 8 Axis CNC Turning Center (Mach. #319267)
2009 - photos http://www.flickr.com/photos/machinetools/sets/72157628407772353/show/
Specifications (Subject to buyer verification):
Control Fanuc 31i Model A
Max Turning Diameter 7.48"
Max Turning Length 19.8"
Slide Travel: X1/X2 5.3"
Slide Travel: Z1/Z2 19.8"
Slide Travel: Y +/- 1.22"
Slide Travel: B-Axis 20.65"
Spindle Speed 6,000 RPM (A2-5)
Hole Through Draw Tube 1.65"
Full C-Axis
Number of Driven Tool Stations 2 x 12
Drive Motor Left Spindle 15/10 HP
Drive Motor Right Spindle 15/10 HP
Machine Weight 13,000 LBS.
Machine Dimensions 142" x 78" x 73"
Opposed two-spindle, 2-turret construction (12 Station Turret with Half-Index Capability (48 total)
24 Milling tool stations
62mm Y-axis on Upper Turrets (+/ 31mm)
6000rpm Milling speed (Upper / Lower)
15 HP + 15 HP L/R spindle motor
9.7 HP C-Axis Milling Capable
Equipped with:
Quickload Servo S3 Barfeed LNS Chip Conveyor
Robo Arm For Load/Offload parts W/conveyor Full C axis
Y axis on upper turret Misc. OD & ID tooling
Misc. Live tooling (5 Straight & 5 Right angle min.) High Pressure Coolant
PRICE: $279,900.00 site, present location
Delivery: Approx. 3 weeks
Terms: Net cash prior to shipment
Also available: 2009 WT-100 – Exact same machine
Price: $264,900 Replacement machine is approx. $350,000.
