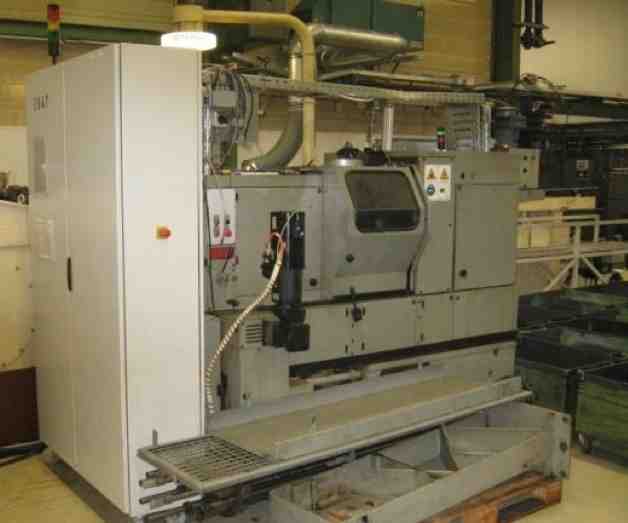

 Tornos BS 20 Multi Spindle Bar 20mm

Specifications

Technical Details
- Number of Spindles : 8
- Bar Diameter : 21 (Cyl), 18 (Hex), 14 (Square) [Mm]
- Spindle Speed : 620 - 5000 [Rpm]
- Monoblock Collet (Made in One Piece)
- Tension : 400 [V] / 15 [Kw]
- Pressure : 6 [Bar]
- High Pressure Pump : 450 [L] / 150 [L/Min]
- Dimensions : 5407 X 1390 X 1645 [Mm]
- Weight : 5400 [Kg]

Notes

EQUIPMENT
- counter spindle
- counter-operation tool-holders
- 6 independent feeds
- cutting tool-holder
- GOLTENBODT tool-holder plate
- 1 independent fixed driller in position 5
- oil mist extractor
- foot and drum
- big lubrification tank
- electrical cabinet Huber System (2006)
