  • CNC Swiss
  • Tsugami
  • BW-07SY
  • Lathe - CNC
  • 7mm
  • 2004
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:

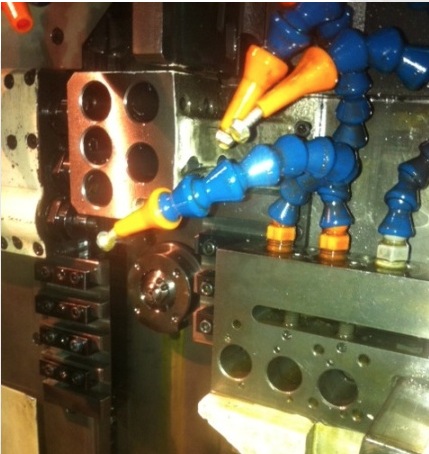

Tsugami BW-07SY Lathe - CNC 7mm 2004

Specifications

Tsugami BW-07SY
Control: Fanuc 16i-TB
Controllable Axes: 7 (X1,Y1,Z1,X2,Y2,Z2, X3,Y3)
Max. Diameter: 7mm
Max. Machining Length:
Fixed Guide Bushing 70 mm
Rotary Guide Bushing: 40 mm
Max. Drilling Diameter: 4 mm
Max. Tapping Diameter: M4 x 0.7
Max. Cross Drilling Diameter: 3 mm
Max. Cross Tapping Diameter: m3 x 0.5
Main Spindle
Speed: 200 to 15,000 rpm
iNDEXING: C-Axis
Back Spindle
Speed: 200 to 12,000 rpm
Indexing: C-Axis
Total Tool Number: 20
Rapid Traverse Rate: 24m/min
Motors:
Main Spindle: 1.1/1.5kW
Back Spindle: 1.1/1.5kW
Rotary Tool: 0.5kW
X1/Z1/Z2/X2/X3 Axes: 0.5kW
Y1/Y3 Axes: 0.75kW
Weight, Approx.: 4850 lbs
Dimensions, Approx. (L x W x H): 6' x 4' x 6'

Notes

Modified With:
LNS Tryton Automatic Bar Loader, S/N 6473-96
with 36 x 8MM tubes for 1-7mm stock
3-live tools
Condition: Excellent: low hours
