  • CNC Machine
  • Gildemeister
  • MF Twin 42Y
  • Lathe - CNC
  • 42mm
  • 2005
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:
  • Tail Stock:
  • Dual Turrets:

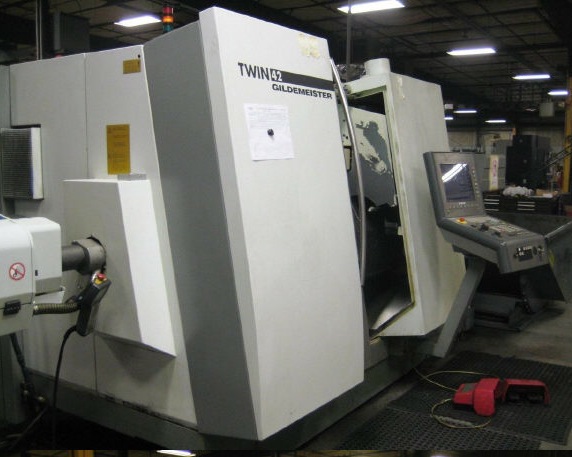

 Gildemeister MF Twin 42Y Lathe - CNC 42mm 2005

Specifications

Turningdiameter: [mm] 100
Max. swing over bed: [mm] 145
Rotational speed: [rpm] 35 - 7.000
Torque: [Nm] 130
Spindle bore: [mm] 56
Input power: [kW] 25 / 35 ( 100% / 40 %)

Tailstock MK3

Subspindle

Travel:
X-Axis: [mm] X1: 220 / X2: 120 / X3: 145
Y-Axis: [+/- mm] 30
Z-Axes: [mm] Z1: 320 / Z2: 345 / Z3: 380
Rapid motion: (X/Z) [m/min] 30 / 15 / 30

Equipment:
Distance between spindle noses: [mm] 580

Amount of turrets: 2
Amount of tools: [pieces] 12 + 12

Driven Tools

Machine weight: [kg] 5.500
Req. space (LxBxH): [m] 3,9 x 2,4 x 2,1

Accessories:
Collets 140 mm

High pressure pumps 20 bar

Chip conveyor

Notes


Bar Capacity, Main & Sub, Round 1.7"
Swing Over Bed, Maximum 5.7"
Turning Diameter 3.93"
Tailstock Stroke 9"
Distance Between Spindle Noses 22.8"
X-Axis/Z Axis, Turret 1, 8.6"/12.6"
X-Axis/Z-Axis, Turret 2, 4.7"/13.6"
Sub Spindle, X-Axis/Z-Axis 5.7"/4.9"
C1/C2-Axis 0.001 Degree
Spindle Speeds, Range to 7000 RPM
Rotary Tool Speeds 30 to 6000 RPM
EQUIPPED WITH:
Siemens Powerline 840D CNC Control

12' Iemca Boss 55IE Bar Feeder

Y-Axis Upper Turret - Collet Chuck on Main & Sub Spindle

12-Position Upper Turret (All Live Positions)
12-Position Lower Turret (All Live Positions)

Chip Conveyor - Parts Catcher
