  • CNC Machine
  • Nakamura
  • WT-300 MMYS
  • Lathe - CNC
  • 2007
  • B Axis:
  • C Axis:
  • Y Axis:
  • Number of Axis: Yes
  • Dual Spindles:
  • Live Tooling:
 Nakamura WT-300 MMYS Lathe - CNC  2007

Specifications

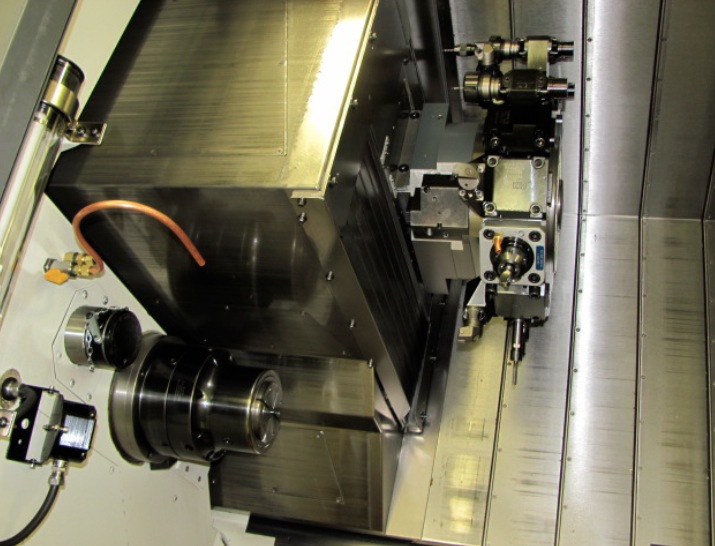

Nakamura Tome WT-300MMYS CNC Turning Center, New 2007
Inventory ID: 3851
Chuck Size: 7.860 " / 199.6 mm
Bar Capacity: 2.550 " / 64.8 mm
Power: 18.5 hp / 13.8 kW
RPM: 4500 rpm
Turning Dia: 10.600 " / 269.2 mm
Swing: 10.600 " / 269.2 mm
Centers: 43.200 " / 1,097.3 mm
Capacity
Max Turning Diameter: 10.63"
Distance Between Spindle: 43.31"
Max Turning Length: 30.71"
Bar Capacity L/R: 2.55"
L, R-Spindle
Spindle Speed: 4500 Rpm
Spindle Nose: a2-6
L Spindle Motor: 7.5 Hp
R Spindle Motor: 7.5 Hp
Rotating Tool / Turret Head:
Rotating Tool Speed: 3600 Rpm
Tool Stations (Rotating Tool): 24 (12St X 2)
Rotating Tool Spindle Motor: 5.5 / 3.7Kw X 2
Rotary System: Individual Rotation
Slide Travel:
X1 / X2-Axis: 7.7" / 7.7"
Z1 / Z2-Axis: 30.7" / 30.7"
Y-Axis Upper Turret: 4.7 (+/-2.3)"
General Dimensions (W X L X H): 147" X 101" X 89"

Notes

Equipped With:
Fanuc 18iTB
LNS Quick Six Short Magazine Barfeed
(9) LNS Guide Tubes, (10) LNS Bar Feed Supports
Royal Products Rota Rak
Dual High Pressure Coolant Systems
Turbo Chip Conveyor
Dual Arm Tool Setters Main/Sub
Renishaw HAN BEI Tool Probe
(5) Z-Axis Live Tool Holders
(1) X-Axis Live Tool Holders
(16) ID Tool Holders
(26) OD Tool Holders
8" 3-Jaw Chuck
S26 Collet
2J Collet Chuck
Hours:
Power On 2648
Operation 1047
Cutting 477
Loads of tooling included.
5 Pages of tooling
