  • CNC Swiss
  • Citizen
  • L-20(5) VII
  • Lathe - CNC
  • 20mm
  • 2000
  • C Axis:
  • Live Tooling:

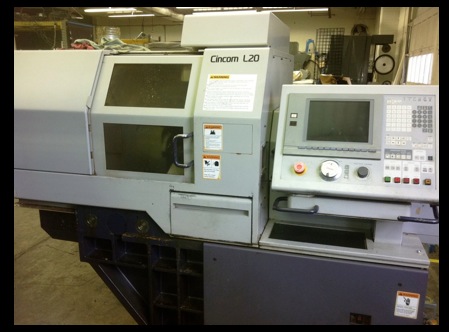

 Citizen L-20(5) VII Lathe - CNC 20mm 2000

Specifications

SPECIFICATIONS:
Max. Machining Diameter........................0.812 In
Max. Machining Length...........................8.1 In
Max. Drilling Diameter.............................0.394 In
Spindle Speed........................................300 - 10,000 RPM
Main Spindle Indexing.............................1 Degree
Pick-Off Spindle
Max. Chucking Diameter....................0.812 In
Pick-Off Spindle Speed......................200 - 8000 RPM
Rotary Tool Spindle Speed......................200 - 5000 RPM
Number of Tools Mounted.......................16
OD Tools...........................................6
Front ID Tools....................................3
Back ID Tools....................................3
Live Tools..........................................4
Pick off Spindle Motor............................2 HP
Rotary Tool Spindle Motor......................1/2 HP
Floor Space Requirements.....................65 In x 37 In
Machine Weight....................................3900 Lbs

Notes

EQUIPPED WITH
Cincom System L CNC Control ( Mitsubishi 635 )
C-Axis Main Spindle
Iemca Mini Boss 325 Magazine Style Barfeed
Main & Back Spindle Synchronization
