Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Mazak
  • INTEGREX 200-III SY
  • Lathe - CNC
  • 2"
  • 2001
  • Y Axis:
  • Number of Axis: Yes
  • Live Tooling:

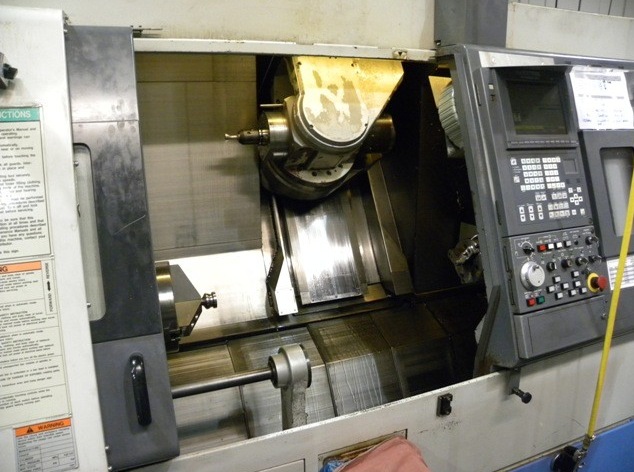

Mazak INTEGREX 200-III SY Lathe - CNC 2

Specifications

Description
Max. Swing 21.25"
Max. Swing over Carriage 15.35" - 21.25"
Max. Cutting Length 39.5"
Main Spindle Nose A2-6
Main Spindle Bore 2.4"
Main Bar Capacity 2"
Main Spindle Speed 35 ~ 5,000 RPM
Main Spindle Range 1
Main Spindle Index 0.001"
Main Spindle Motor 30/20 HP
Sub Spindle Nose A2-6
Sub Spindle Bore 2.04"
Sub Bar Capacity 1.69"
Sub Spindle Speed 35 ~ 5,000 RPM
Sub Spindle Index 0.001"
Sub Spindle Motor 10 HP
Tool Capacity 40 ATC
Rotary Tool Speed 15 ~ 10,000 RPM
Rotary Tool Motor 20 HP
Y-Axis Travel +/- 3.15"
X-Axis Travel 20.87"
Z-Axis Travel 42"
Second Headstock Z Travel 39.57"
Estimated Machine Weight 16,500 LBS

Notes

Mazatrol Fusion CNC Control
LNS Quick Load Bar Feed
10" Pratt Burned 3 Jaw Chuck Main Spindle
6.5" Pratt Burned 3 Jaw Chuck Sub Spindle
Automatic Parts Catcher
Milling Spindle Synchronous Tapping
Coolant Through Milling Head
Chip Conveyor
EIA / ISO
