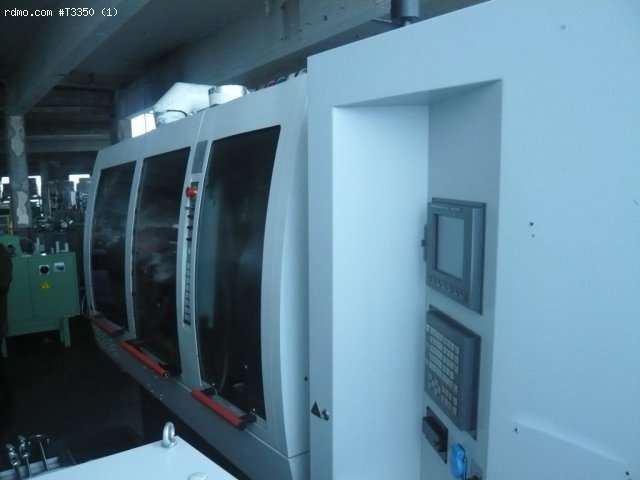

Tornos Deco 20.8 Multi Spindle Bar 20mm 2004

Specifications

- bar clearance : 5-20 [mm]
- maxi part length (without counter operation) : 100 [mm]
- maxi part length (with counter operation) : 80 [mm
- spindle rotation speed : 5 000 [rpm]
- spindles maxi power : 15 [kW]
- drilling/tapping maxi power : 3.7 [kW]
- number of numerical axes : 23
- number of cross slides : 5
- number of transversal slides : 2
- number of cutting transversal slides : 1
- counter operation slide : 1
- end units : 7
- number of counter spindle : 1
- counter spindle motor power : 1.1 [kW]
- dimensions : 5880 x 1400 x 1950 [mm]
- weight : 7 200 [kg]

Notes

- TORNOS PNC-DECO control
- HIRTH teeth drum locking
- high pressure pump 30 bars + additional tank of 450 liters
+ cooling unit
- 7 fixed drillers
- pick up with counter operation
- Goltenbodt 8 turning tool-holders
- foot and drum
- IEMCA PRA 52/33F bar feeder
- chips conveyor
- number of hours 16 600
