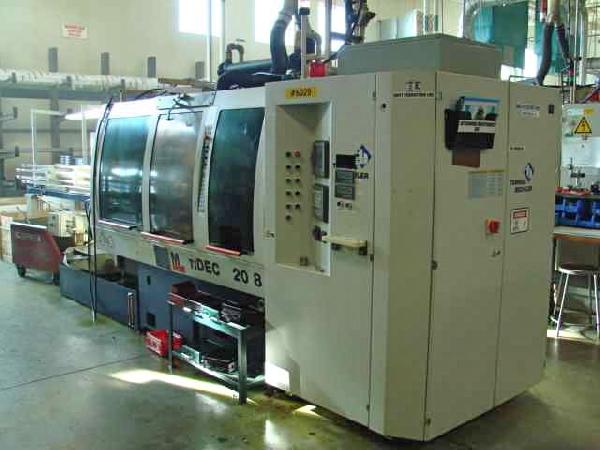

 Tornos BS 20.8 Multi Spindle Bar 20mm 2000

Specifications

Bar capacity mm 22 (25)
Max. length of part mm 100
Max. speed of motorized spindles rpm 8'000
Motorized spindle power kW 11.2
Motorized spindle torque Nm 17 (25)
Max. counter-spindle speed rpm 8'000
Motor counter-spindle power kW 3.7
Counter-spindle motor torque Nm 8.3
Max. drilling motor speed rpm 8'000 (6'000)
Drilling motor power kW 6 (12.1)
Drilling motor torque Nm 2
Max. speed of the counter-operation tool drive motor rpm 8'000
Power of the counter-operation tool drive motor kW 1.5
Torque of the counter-operation tool drive motor Nm 2
Number of linear axes 28
Number of rotary axes 9
Travel of crossing slide in X mm 50
Travel of crossing slide in Z mm 80
Travel of crossing slide in Y mm 12
Travel of end unit in Z mm 200
Travel of end unit in Y mm 13
Cutting slide travel (X7, X8) mm 65
Counter-spindle travel in Y mm 280
Counter-spindle travel in Z mm 450
Back-operation tool support travel mm 52
No. of tools for back-operation 2 x 5 tools
Spindle cooling Yes
Numeric control Fanuc 30i
Programming system TB-DECO

Notes

Cucchi Magazine Bar Loader
Pickup
Back Finish
Threading
Barnes Chip Conveyor and Filtration System
Set of Tool Holders on All Positions
Fanuc Pnc Deco Cnc Controller
Complete Guarding
