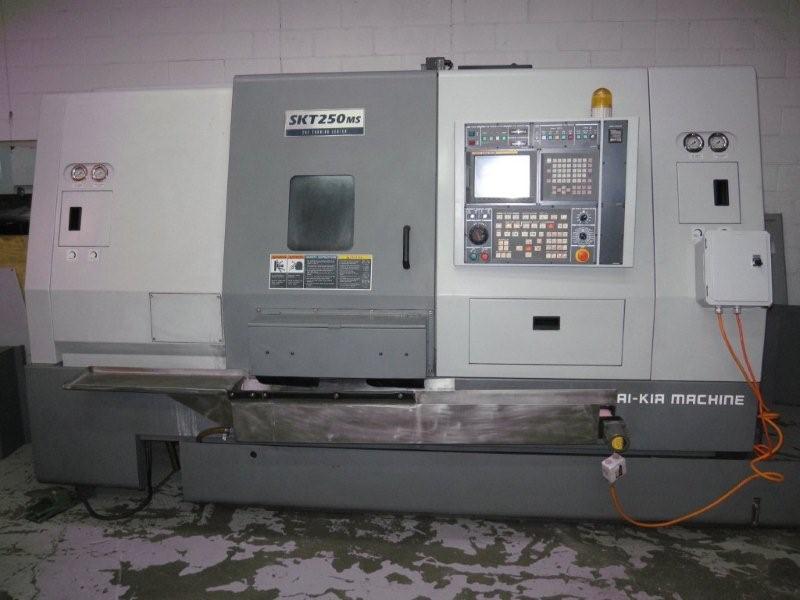

 Hyundai SKT250MS Lathe - CNC 3

Specifications

HYUNDAI-KIA MODEL SKT-250MS
CNC LATHE WITH LIVE MILLING, SUB-SPINDLE
NEW: 2005 - BANK REPO
MAIN SPINDLE:
CHUCK DIAMETER......................... 10"
SPINDLE NOSE........................... A2-8
SPINDLE BORE........................... 3.74"
MAXIMUM SPINDLE SPEED.................. 3,500 RPM
MAIN SPINDLE MOTOR..................... 30 HP SUB SPINDLE:
CHUCK DIAMETER......................... 8"
SPINDLE NOSE........................... A2-6
SPINDLE BORE........................... 3.07"
MAZIMUM SPINDLE SPEED.................. 4,000 RPM
SUB SPINDLE MOTOR...................... 15 HP MACHINE CAPACITY:
SWING OVER BED......................... 29.5"
SWING OVER THE CROSS SLIDE............. 18.9"
MAXIMUM TURNING DIAMETER............... 16.1"
MAXIUM TURNING LENGTH.................. 26.8"
TURRET................................. 12 POSITIONS
MILLING TOOL SPEEDS.................... TO 4,000 RPM
MILLING TOOL MOTOR..................... 7 HP

Notes

EQUIPPED WITH:
* FANUC 18iTB CNC CONTROL
* Q SETTER * PARTS CATCHER * CHIP CONVEYOR
* BAR FEED INTERFACE
* C-AXIS FOR MAIN AND SUB SPINLE
* 4-LIVE HOLDERS
