  • Transfer Machine
  • Diedesheim
  • AM-II
  • Rotary
  • 1974

Specifications

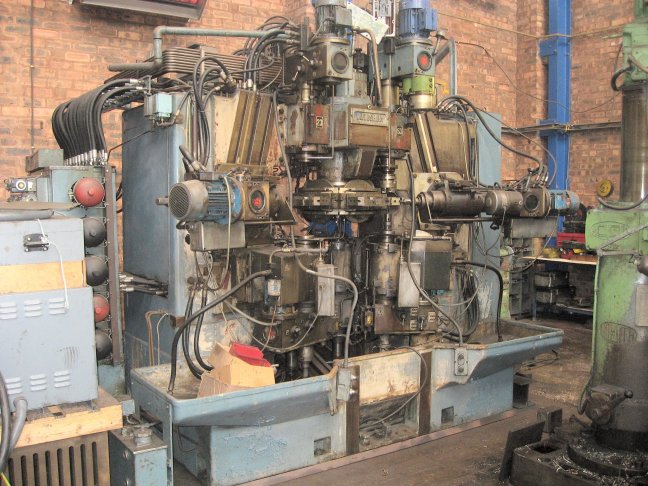

One used Diedesheim model "AM 2" 12 spindle, 5 station,
3 axis rotary transfer machine. Horizontal indexing turret.
Equipped with 5 x 2-jaw-chucks (300 mm dia.) Spindle
diameter 65 mm. Electrics 400 Volt/3/50 Hz.
Station 1: Load / Unload
Unit 2.3 Drilling/Boring spindle
Station 2: Unit 2.2 Drilling/Boring spindle
Unit 2.1 Drilling/Boring spindle
Unit 3.3 Drilling/Facing spindle
Station 3: Unit 3.2 Combination Drilling & Threading
Unit 3.1 Drilling/Facing spindle
Unit 4.3 Combination Drilling & Threading
Station 4: Unit 4.2 Combination Drilling & Threading
Unit 4.1 Drilling/Facing spindle
Unit 5.3 Combination Drilling & Threading
Station 5: Unit 5.2 Combination Drilling & Threading
Unit 5.1 Combination Drilling & Threading
MACHINING UNITS TYPE "HYP 65" AND "GP 65"
DRILLING UNITS STROKE 100/150 MM.
THREADING UNITS STROKE 80 MM.
STROKE RESTRICTORS FITTED ON UNITS 22, 32, 41 AND 42.
HORIZONTAL UNITS CAN BE SWIVELLED (ADJUSTED)
AND OFF-SET FROM CENTRELINE. BOTTOM UNITS
CAN ALSO BE SWIVELLED AND OFF-SET FROM CENTRELINE.
WEIGHT OF MACHINE 15000 kgs approx.
SPACE REQUIREMENT, 3160 MM x 2235 MM x 2750 MM HIGH.
SPINDLE SPEEDS
UNITS: 2.1, 3.1, 3.2, 4.1, 4.2, 5.3
56 - 90 - 140 - 224 - 280 - 355 - 450 -
560 - 710 - 1120 - 1800 - 2800 RPM
UNITS: 2.2, 2.3, 3.3, 4.3, 5.2
280 - 450 - 710 - 1120 - 1800 - 2800 RPM
UNIT: 5.1 (POLECHANGE MOTOR)
28 - 45 - 56 - 71 - 90 - 112 - 140 -
180 - 224 - 280 - 355 - 450 - 560 710 -
900 - 1120 - 1400 - 1800 - 2800 RPM

Notes

FEEDS INFINITELY VARIABLE FROM 20 TO 1150 MM/MIN.
MACHINE WAS PREVIOUSLY WORKING ON STEEL CASTINGS;
BUT SPINDLE SPEEDS ARE ALSO SUITABLE FOR NON-
FERROUS (i.e. BRASS) COMPONENTS.
Technical details are non-binding. Preliminary specification
only, subject to verification by the buyer.
Availability: immediate, ex stock.
Location: Birmingham, UK

Delivery: Partial dismantling, export packing (if required),
containerization and shipment are extra at cost. Quotations
can be provided upon request - please advise preferred
port of destination.
Payment: in full before loading/shipment.
Validity of offer: subject to prior sale.
Guarantee or warranty: none given or implied, as this is
a second-hand machine.
