Sold!
Buy one like this

I want to sell a machine like this

  • CNC Machine
  • Hitachi-Seiki
  • HI-Cell CH-250
  • Lathe - CNC
  • 1.65"
  • 2001
  • C Axis:
  • Y Axis:
  • Live Tooling:

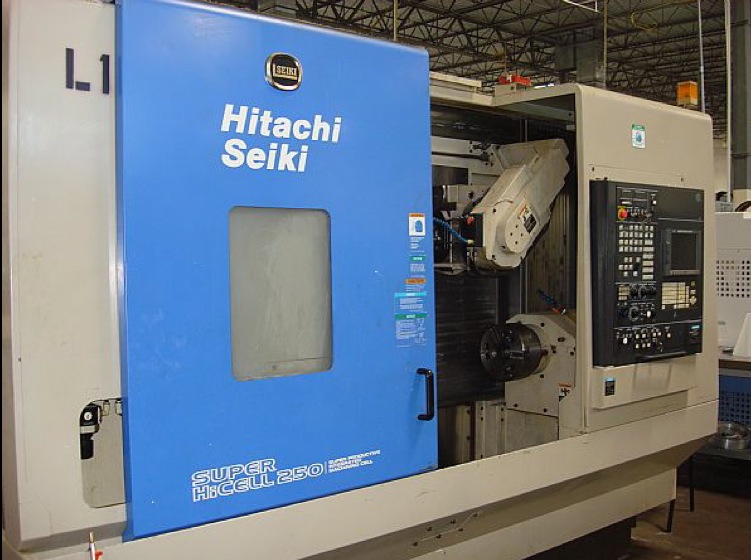

Hitachi-Seiki HI-Cell CH-250 Lathe - CNC 1.65

Specifications

Swing Over Bed: 19.68"
Maximum Cutting Diameter: 19.68"
Maximum Machining Diameter: 14.56" (with Live Tools)
Bar Capacity (Main Spindle): 2.56"
Spindle Speeds (Main Spindle): 30 to 4,000 RPM
Spindle Drive Motor (Main Spindle): 20/25 HP
Y-Axis Travel: +/- 2.95" from C/L of spindle
Bar Capacity (Sub Spindle): 1.65"
Spindle Speeds (Sub Spindle): 50 to 5,000 RPM
Spindle Drive Motor (Sub Spindle): 7.5/10 HP
Live Tooling Speeds: 80 to 8,000 RPM
Live Tooling Drive Motor: 7.5/10 HP
Live Tooling Taper: No. 40 short
Tool Capacity: 20 ATC

Notes

Batteries are dead - parameters need to be reset.
Equipped with:
Seicos CNC Control
10" 3-Jaw Air Chuck-Main Spindle
8" 3-Jaw Air Chuck-Sub-Spindle
Full C-Axis Contouring-Main Spindle and Sub-Spindle
Tool Presetter
Coolant System
Full Enclosure
All Available Tooling
All Available Manuals
