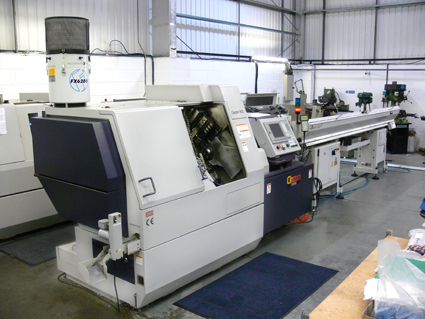

 Citizen M-32 Lathe - CNC 32mm 2002

Specifications

Specifications for a 2004 machine
CNC Control: Cincom M6B (Mitsubishi 630)
Axes: X1,Y1,Z1,C1,X2,Z2,C2,X3,Z3 (misc Axes: TI, A1,A2,A3)
Max. machining diameter: 1-1/4" (32mm)
Max. machining length per chucking: 12.59" (320mm)
Main spindle speeds: 200 - 8000 rpm
Rotary tool speeds: (turret & gang plate): 250 - 5000 rpm
Backworking:
max. chucking dia: 1-1/4" (32mm)
max. backwork length: 5.70" (145mm)
max. drilling/tapping: M8
back spindle speeds: 200 - 7000 rpm
Number of installable tools:
turret tooling: 10 (20 in half index mode)
gang-tool tooling: 5 turning + 4 rotary
back working tool post: 3 (plus rear facing tools on
turret)
Tool sizes:
gang tooling: 16mm x 16mm x 130mm
turret tooling: 16mm x 16mm x 90mm
sleeve size: 25.4mm diameter
Motors:
main spindle drive: 5 / 7.5 Horsepower
rotary tool: 2 Horsepower
back spindle drive: 2 / 3 Horsepower
Dimensions (approx.): 110" x 50" x 72"h
Height (approx.): 6050 lbs.

Notes

With Iemca Boss 432/37 bar feeder.
WITH C AXIS. VERSION 2 TYPE 3. NO
Y AXIS. CITIZEN CINCOM CONTROL
(Mitsubishi 600 series)
Controller: CINCOM
