  • CNC Machine
  • Hyundai Kia
  • SKT 210Y
  • Lathe - CNC
  • 2.56"
  • 2006
  • Y Axis:
  • Dual Spindles:

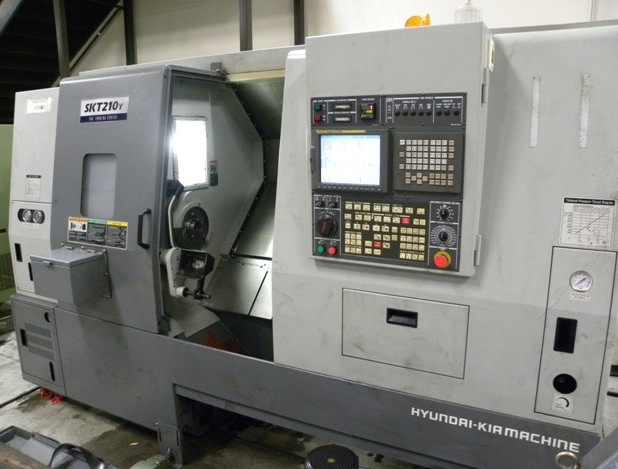

Hyundai Kia SKT 210Y Lathe - CNC 2.56

Specifications

Swing Over Bed 21.7"
Maximum Turning Diameter / Turning 9.5"
Maximum Turning Diameter / Milling 7.24"
Maximum Turning Length 20.87"
Bar Capacity 2.56"
X Axis Travel 8.7"
Z Axis Travel 21.7"
Y Axis Travel 3.1"
Spindle Speed 4000 RPM
Spindle Bore 3.0"
C Axis Indexing 0.001 Degree
Spindle Motor 20/15 HP
Turret Positions 12
Turret Type VDI 40
Live Tool Milling Speed 4000 RPM
Live Tool Motor 3.6 HP
Tailstock Taper MT #4
Tailstock Diameter 2.2"
Tailstock Travel 28.3"
Bed Slant 45 Degree
Floor Space 120" x 68"
Approximate Machine Weight 9900 LBS

Notes

Equipped With:
Equipped With
Fanuc 21i-TB CNC Control
LNS Eco Load Bar Feed
Chip Conveyor
Parts Catcher
