Citizen F-16 Lathe - CNC 16mm 1985

Specifications

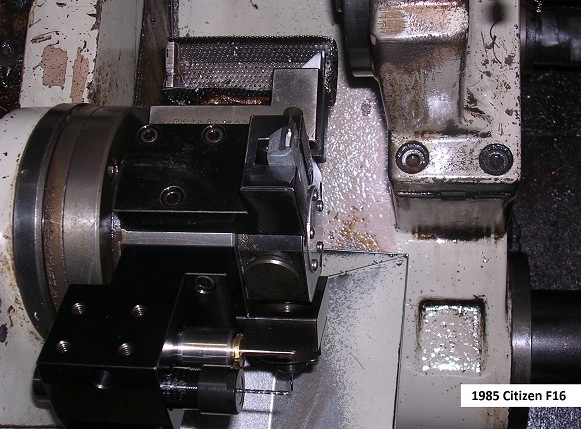

1985 Citizen F-16
Screw Type CNC Turning Center
Control: Fanuc 3T
Maximum Working Diameter: .63"
Maximum Length per Chucking: 4.92"
Number of Tool Stations: 10
Main Spindle Speeds (RPM): 180/8000
-Spindle Speeds Rotary Tools-
Low Speed Turret: 200 - 1000 RPM
High Speed Turret: 300 - 6400 RPM
Minimum Indexing Increment of Main Spindle: 1 Deg. Pulse
Main Spindle Motor (30 min. rating/cont.): 7.3HP/5HP
Weight (approx.): 5100 LBS.
