  • CNC Machine
  • Mori-Seiki
  • SL-250BMC/500
  • Lathe - CNC
  • 2.9"
  • 2000
  • C Axis:
  • Y Axis:
  • Dual Spindles:
  • Live Tooling:
 Mori-Seiki SL-250BMC/500 Lathe - CNC 2.9

Specifications

Catalog Specs
Chuck Size 10"
Max Diameter Bar Capacity 2.87"
Max Swing Over Bed / Carriage 26.8" / 20.1"
Max Turning Diameter (Std) 15.3" / 9.8"
Distance Between Centers 22.6"
Max Machining Length 19.1"
Spindle Motor 20 / 15 Horsepower
Spindle Speed 35 - 3500 RPM
Spindle Bore 3.4"
Spindle Nose A2-8
Spindle Torque 351.8 ft. lbs.
Tools 10
Rapid Traverse Rates 708 / 945 IPM
X-Axis Travel 9.3"
Z-Axis Travel 20.5"
Turret Index (Single Step) 0.2 Seconds
Tailstock Taper MT #5
Machine Dimensions (L x W x H) 94.7" x 69.3" x 74.2"
Machine Weight 9900 lbs.

Notes

Location Denmark

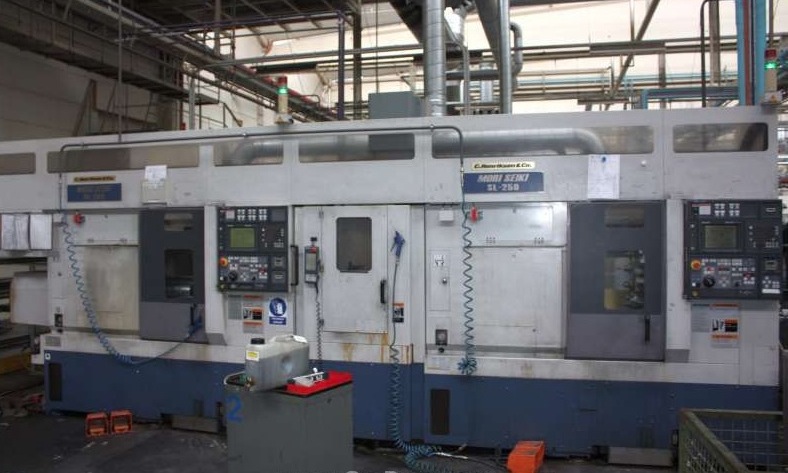

Description: Linked,
Double-ended, Twin Spindle
CNC Lathes. These are
effectively 2 Mori Seiki CNC
Lathes linked together.
Left-hand machine is a model
SL 250B/500 with X and Y axes
and MSC 500 CNC Control.
Right-hand machine is a model
SL 250 BMC/500 with X,Y and C
Axes and MSC 501 CNC Control.
A pick and place robot loads
the machines on the left-hand
side and a turn-over robot
transfers the component
between the machines. Twin
Swarf Conveyors, Coolant
Clarifier Unit.
(Machine Available after 1st July
2011)
